Fine Filters
Aqua Bag Filters
C Cell Mini Pleat Filters
Rigid Bag Filters
Synthetic Bag Filters
V Cell Filters (Aerovee Filters)

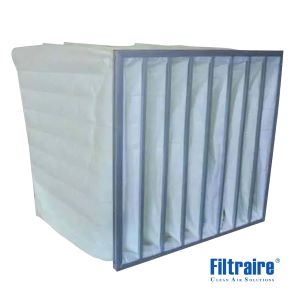

Aqua Bag Filters
- Aqua bag filters utilizes 100% synthetic filter media having high tensile strength developed through melt blown process.
- Aqua bag filters provides extended surface filtration through media formed into individual dust holding pockets.
- Each pocket is bonded and sealed to its own “J” channel support frame which is fastened to a heavy duty frame with soft edges to avoid the damage to filter media.
- These filters are designed with lower pressure drop media and high dust holding capacity.

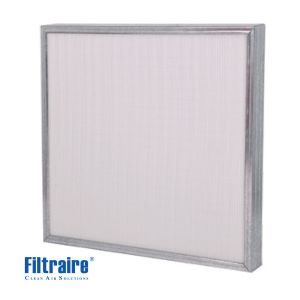

C Cell Mini Pleat Filters
- C Cell Mini Pleat Filters are widely used in Air conditioning units as the second or last stage of filtration level for environments withhigh demands on separation of fine dust particles.
- The compact design, larger surface area and low initial resistance made it an ideal alternative to ordinary Bag Filters & Box Filters of the similar efficiencies.
- C Cell filter uses Micro glass fiber media and frames are available in GI, Aluminum, Stainless Steel as per the requirement.
- Light weight design makes it as an excellent choice in difficult HVAC installations.

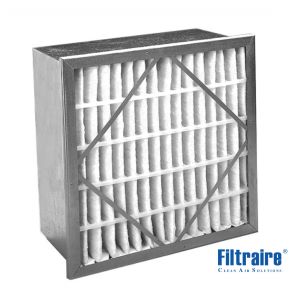

Rigid Bag Filters
- Rigid Bag Filters are made up of Superior grade synthetic media laminated with an expanded metal mesh having 98% open area which provided adequate strength to the media pleat pack, supports the media & gives rigidity to the pleats.
- The Radial V pleats with die cut pleat stabilizers results in rigid and stable filter offering consistent performance under various operating conditions.
- Standard frame material is GI, available also in Stainless Steel and Aluminum.
- Deep pleated media pack is encased in metalic frame ensures leak free operation.

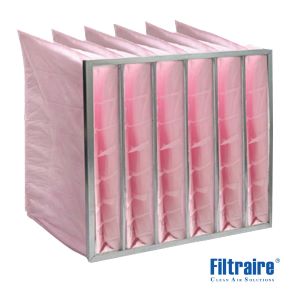

Synthetic Bag Filters
- Aerobag filters utilizes 100% synthetic filter media having high tensile strength developed through melt blown process.
- Aerobag filters provides extended surface filtration through media formed into individual dust holding pockets.
- Each pocket is bonded and sealed to its own “J” channel support frame which is fastened to a heavy duty frame with soft edges to avoid the damage to filter media.
- These filters offer excellent filtration performance combined with high dust holding capacity and suitable for applications where high degree of cleanliness is required.
- Ultrasonically welded media ensures optimum media utilization and eliminates leakage.

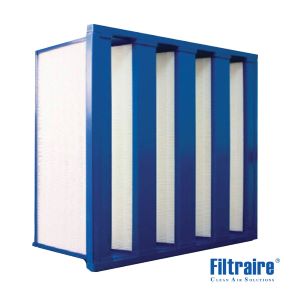

V Cell Filters (Aerovee Filters)
- Aerovee Filters (V Cell) are fine dust filters using micro fine glass fiber as the filter media.
- ABS Plastic frame construction allows easy installation and lighter weight
- Mini Pleat construction of media ensures large filter surface with maximum dust holding capacity.
- Life of the Aerovee filter is higher comparative to the other fine filters of similar grades.
- High Strength media bonded to the frame using Poly Urethane giving high burst resistance
- Filter is completely incinerable
- Filter can be provided with optional Gasket as per the requirement
HEPA Filters
Deep Pleat HEPA Filters
HEPA V Bank Filters
Mini Pleat Gasket Filters
Mini Pleat HEPA Gelseal Filters

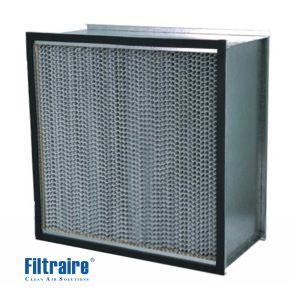

Deep Pleat HEPA Filters
- Deep Pleat HEPA Filters utilizes micro glass fiber, formed into robust, deep pleats are divided by Aluminum separators.
- Standard Galvanized Steel Frame. Available in SS, Aluminum, MDF Frames also.
- Deep Pleat media allows a large filtering area for maximum airf low giving strength and ensuring performance, during higher volumes
- Pleated Aluminum Separators helps to hold the pleats in its position, hemmed edges for added strength and media protection

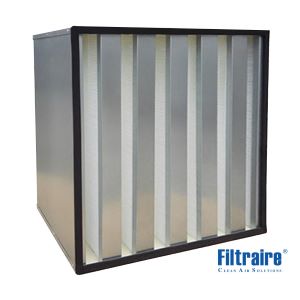

HEPA V Bank Filters
- HEPA V Bank filters consist of several Mini-Pleat packages which are assembled in V shaped forms enclosed in a frame.
- Standard Galvanized Steel Frame. Available in SS,ABS,MDF Frames also.
- Mini Pleat construction with V Shaped configuration of Micro glass fiber media ensures large filter surface with maximum airfIow results into lower pressure drop and increased filter life.
- High Strength media bonded to the frame using Poly Urethane giving high burst resistance.

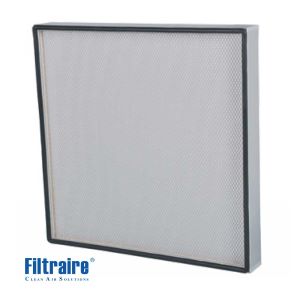

Mini Pleat Gasket Filters
- Mini Pleat HEPA Filters are used in situations requiring high or very high level of purity.
- It uses Micro glass fiber media in mini pleat construction, which ensures a large filtering area for maximum airf low.
- Standard Extruded Anodized Aluminum Frame. Available in SS, Aluminum & GI Frames also.
- Each filter is tested as per EN 1822 standard to ensure leak proof performance. Individual test reports and labels are provided for Each HEPA Filters along with the delivery.

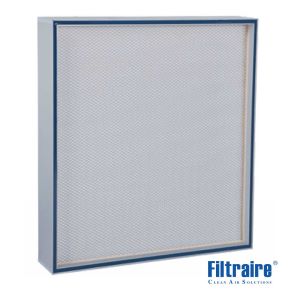

Mini Pleat HEPA Gelseal Filters
- Mini Pleat HEPA Gelseal Filters are used in situations requiring high or very high level of purity.
- It uses Micro glass fiber media in mini pleat construction, which ensures a large filtering area for maximum air fIow.
- Standard Extruded Anodized Aluminum Frame. Available in SS, Aluminum, Frames also.
- Each filter is tested as per EN 1822 standard to ensure leak proof performance. Individual test reports and labels are provided for Each HEPA Filters along with the delivery.
- Gelseal are provided at Air entry or Exit side as per the requirement.
CARBON FILTERS
Carbocell Filters
Carbofill Filters
Carbon Panel Filters
Cylindrical Carbon Filters
Granulated Carbo V Filters

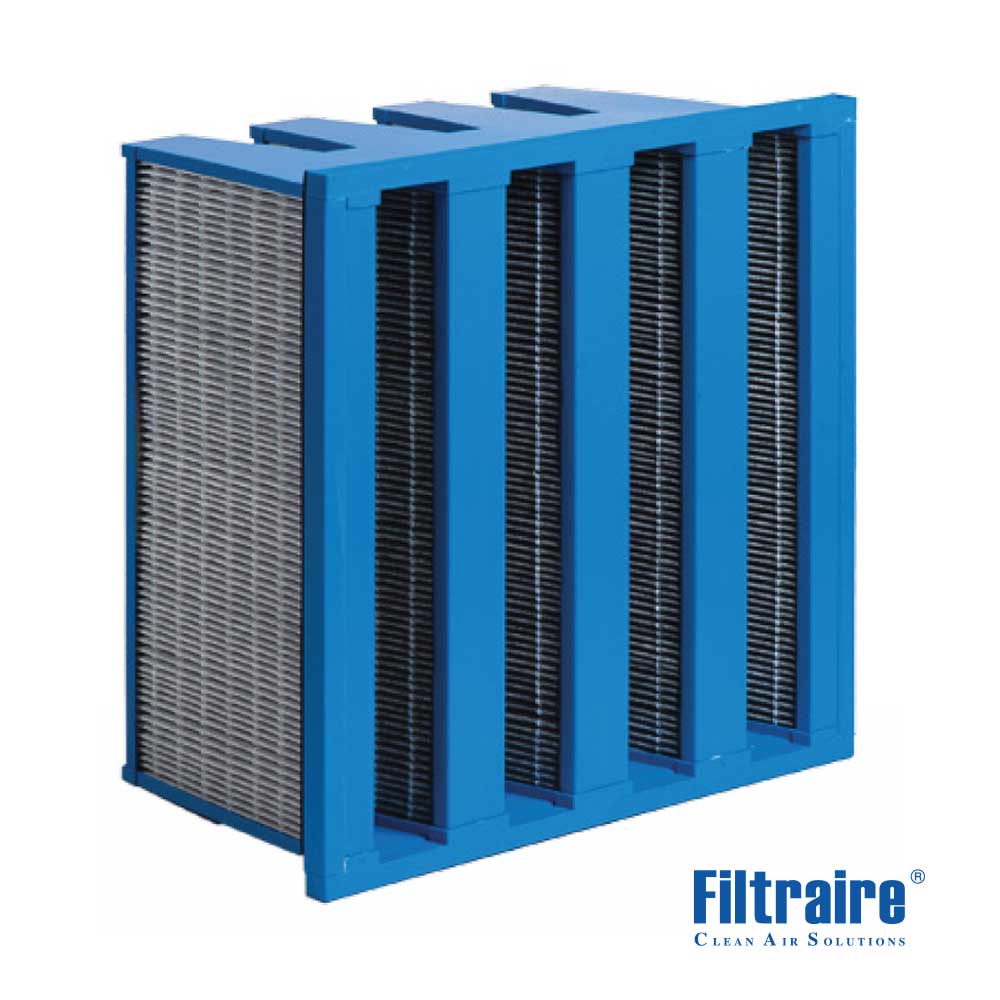

Carbocell Filters
- Carbocell filters uses a micro granulate adsorbent particle (Activated Carbon) embedded in dual layer synthetic media, close pleated and bonded to a rigid V shaped frame construction.
- The High Activity rate made Carbocell filters the right choice for HVAC and micro-electrics applications.
- The filter frame has a 20/25mm peripheral header which allows easy installation inside or front mounting and withdrawal frames.
- ABS Plastic frame ensures the filters are Corrosion free.
- Available in a range of standard sizes and filtration grades.

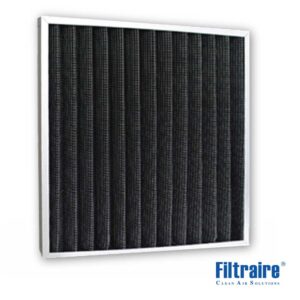

Carbofill Filters
- Carbofill Filters are pleated /Plain panels which offers extended surface filtration combined with Odor Control.
- The Filter media is granulated activated carbon with large surface area sandwiched between 100% synthetic Filter Media.
- This kind of structure gives low pressure drop, more contact surface with gas, dealing high flow rate.
- Carbofill Filters removes Odor, Fumes and airborne molecular contaminants.
- Carbofill Filters are available in fIat panel type (1”) & pleated panel type (2”, 4”) with wire grid support on both sides and encased in metallic frames and can be made in various sizes.

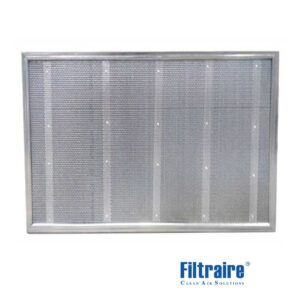

Carbon Panel Filters
- Carbo Panel Filters are Activated Carbon Panel type filters which consists of Activated Carbon or Chemically Impregnated granular filled panels with Metalic frame and perforated metal sides.
- This kind of structure gives low pressure drop, more contact surface with gas, dealing high fIow rate.
- Media is available in Activated Carbon granules, Potassium Permanganate or 50/50 Blend of both.
- Carbo Panel Filters removes odor, Fumes and airborne molecular contaminants.
- Removal is through a combination of Physical property Adsorption and chemical process of Oxidation.
- The use of special impregnating chemicals renders Activated Carbon capable of absorbing all types of harmful and corrosive gases.
- Disposable and refillable type constructions of various sizes are available upon the client requirement.

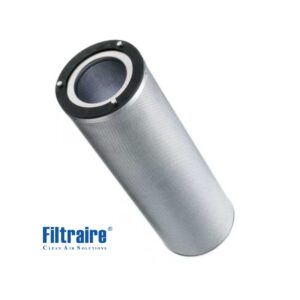

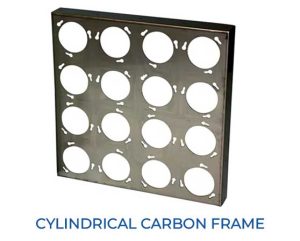

Cylindrical Carbon Filters
- Cylindrical Carbon Filters are metal cylindrical molecular filters. The Filters are used for high efficiency removal of molecular contaminants from supply air, recirculation air and exhaust air ventilation systems in sensitive buildings and process applications
- C Carbo filters consists of a pair of Concentric Cylinders formed from perforated sheets or expanded metal and mounted on a metallic base plate.
- The cylinders are filled using vibratory technique to achieve perfect packing density of the Carbon, this essential procedure prevents subsequent settling and formation of by-passes.
- The cylindrical Cartridges are made up with provision to refill the filter media granules.
- This kind of structure gives low pressure drop, more contact surface with gas, dealing high flow rate.
- Filters are mounted on to the base plate using integrated bayonet fasting’s without the need for specialized tools.
- Cylindrical Carbon Filters removes Odor, Fumes and airborne molecular contaminants.

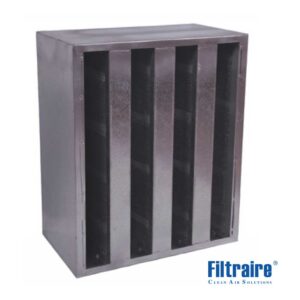

Granulated Carbo V Filters
- Carbo V Filter serves to absorb gaseous pollutants and Odors.
- Carbo V Filters are made up of Activated Carbon / Chemically impregnated granules filled deep bed panels arranged in a V Shaped and encased in a Metalic Box frame.
- Media is available in Activated Carbon granules, Potassium Permanganate or 50/50 Blend of both.
- The Carbon granules has a minimum CTC activity rate of 60%.
- Frame and panel material is made up of Galvanized Steel.
- Carbo V Filters removes odor, fumes and airborne molecular contaminants.
- Removal is through a combination of Physical property Adsorption and chemical process of Oxidation.
PRE Filters
Aeroblend Filters
Aluminum Pleated Filters (Alufil)
Aluminum Washable Filters (Metafil)
Baffle Filters
Disposable Panel Filters
Aeroblend Filters
- Aeroblend Filters are constructed from a combination of Aluminum and Synthetic Polyester media, the front layer helps to trap large contaminants rom penetrating into the system backed by a second layer of Synthetic media for improved pre filtration performance.
- Synthetic media is supported by GI diamond mesh support on both sides.
- Serves two purposes in one solution, an excellent choice in limited or single stage HVAC Systems.
- Comprehensive range of standard and custom sizes.
Aluminum Pleated Filters (Alufil)
- Alufil filters are made up of corrugated Aluminum/SS /GI fine mesh, contain multiple layers of metal mesh.
- Multiple layers of media offer maximum expanded filter surface and lower pressure drop.
- The multi layered media is held firm by using expanded mesh support on both sides of the media.
- Ability to perform in high moisture condition and good dust holding capacity
- Easy to install and can be washed in a solution of detergent and water or cleaned with compressed air
- Prevents grease / oil in the kitchen extract ducts, thereby reducing the risk of fire, reducing the frequency
of duct cleaning, increasing the life span of kitchen extract fans

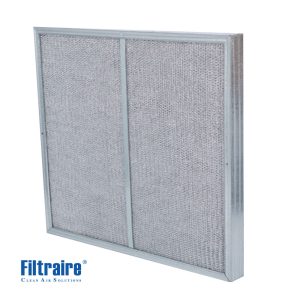

Aluminum Washable Filters (Metafil)
- Metafil filters are made up of Slit and expanded corrugated Aluminum Mesh.
- Multiple layers of media offer maximum expanded filter surface and lower pressure drop.
- 9 Ply media arranged as single or Dual layer.
- Heavy gauge expanded grids can be provided on both sides protect the media and add rigidity to the filter construction upon request.
- Filters have low initial resistance and their ability to depth load rather than surface load, a vary gradual resistance build-up results, increasing theservice life of the filter.

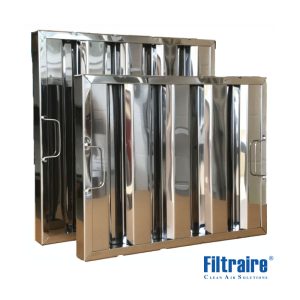

Baffle Filters
- BaffIe Filters are designed to prevent flames from penetrating through the filter into the duct work. Two layers of equally spaced baffIes create an air fIow, which gives unsurpassed performance in efficient grease removal.
- Smooth baffIe surfaces cause a continuous run-off, allowing grease to be safely deposited in collection troughs.
- BaffIe filters works very differently from the Mesh Style filter, the filter works by forcing the Grease laden air to change the direction and velocity it passes through the filter, rather than collecting the grease within the filter medium.
- The Grease droplets are unable to change the direction as quickly, it become separated from the air and deposited on the baffIe blades and drained into drip trays
Disposable Panel Filters
- Disposable Panel filters are designed for General use in Air conditioning and industrial applications.
- Panfil Filters are disposable type pleated Panels which offers extended surface filtration, designed to suite a wide variety of HVAC applications.
- The filter media is an exclusive grade of Non-woven cotton/ Polyester blend supported by diamond wire grid on Air exit side.
- The Pleated media pack is encased in a heavy duty wet strength beverage board frame with diagonal support on both Air entry and exit sides.
- Diagonal front and back retainers are the integral part of the frame. Panfil filters is available with GI frame construction also.
Grease Filters
Nylon Mesh Filters
Pan Dust Filter
Plain Panel Filters
Pleated Panel Filter (Multipleat)

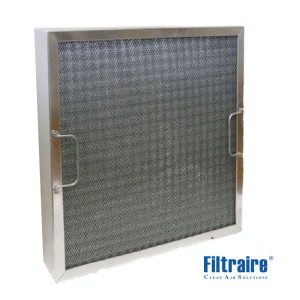

Grease Filters
- Grease Filters are used in Kitchen extract systems to arrest grease from the extract air.
- The Filter consist of a rigid Stainless-Steel frame, with a pleated Stainless Steel wire mesh media, which is graded for maximum grease retention.
- Grease is collected in the wire mesh media and needs to be cleaned once in a week based on the cooking load.
- Filters can be customized to any sizes based on the requirement.
- Handles are fitted on the shortest sides as a standard, with drain holes in top and bottom leading edge, the filters can be fitted in either way.

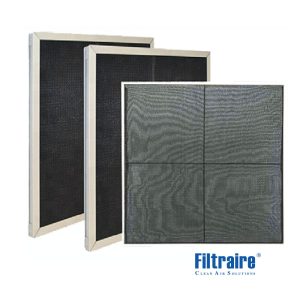

Nylon Mesh Filters
- Nylon Mesh Filters are used as a pre-filter in all types of Air handling units. It uses passive electrostatic attraction to trap airborne particles.
- It is an excellent replacement for disposable type and other low efficiency filters. It is suitable for industrial, commercial as well as residential
application where clean air is required.

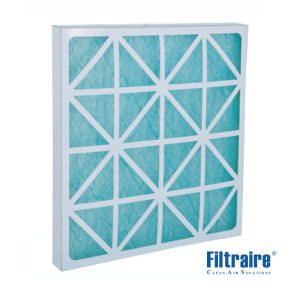

Pan Dust Filter
- PANDUST are made of progressively compressed glass fiber filter medium mounted into a stable cardboard or galvanized frame.
- The filter medium is impregnated with special dust binding agent.
- The filter elements of Pandust show excellent accumulation of coarse dust particles with very low-pressure losses.
- The filter elements PANDUST are used mainly as prefilters in air-conditioning and ventilation units. It capture a large amount of dust due to progressive construction of their filter media.
- Filters can be Customized into any sizes as per the requirement.

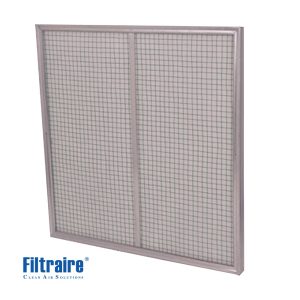

Plain Panel Filters
- Plain Panel filters are cleanable/Washable filters made up of Non-woven, High lofted Synthetic poly ester media.
- Metalic frame construction will offers greater resistance in hard operating conditions.
- Filter offers very high dust arrestance and dust holding capacity than the other types of similar grade panel filters.
- Use as Pre filter lengthens the service life of other secondary filters.
- PVC Coated wire mesh support on both upstream and downstream sides ensures rigidity to the media.
- The filter can be cleaned with low pressure air once or twice during its normal lifetime. It can be cleaned with a
solution of water and detergent on a limited basis.

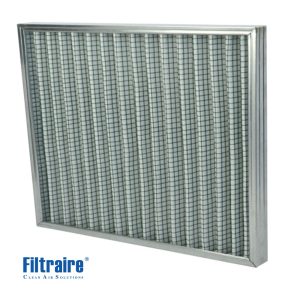

Pleated Panel Filter (Multipleat)
- Multipleat Filters are made from Poly ester synthetic media pleated with PVC Coated Galvanized wire mesh.
- Metalic frame construction will offers greater resistance in hard operating conditions.
- Filter offers very high dust arrestance and dust holding capacity than the other types of similar grade panel filters.
- Use as Pre filter lengthens the service life of other secondary filters.
- PVC Coated wire mesh support on both upstream and downstream sides ensures rigidity to the pleats and pleat stability.
- A large filter surface is provided by pleating the media which forms a radial V Shaped design to ensure maximum media utilization.
- The filter can be cleaned with low pressure air once or twice during its normal lifetime. It can be cleaned with a solution of water and
detergent on a limited basis.
Filter Accessories
Aluminun Washable Media Rolls
Synthetic Media Rolls
Glass Fiber

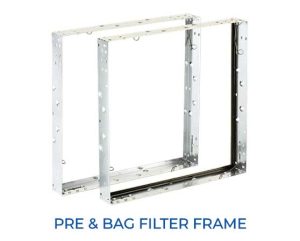

Holding Frames
Activated Alumina Granules
Activated Carbon Granules

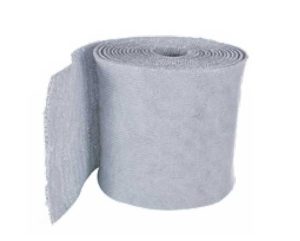

Aluminun Washable Media Rolls
Aluminum washable media can be effectively used in Kitchen ventilating equipment and systems.It can remove extremely high percentage of grease and other foreign matter from exhaust or recirculating air. Aluminum Washable media are available in forms of both rolls & Pads

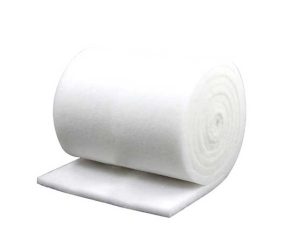

Synthetic Media Rolls
- Available Grades: G3, G4
- Media : Synthetic Poly ester
- Options : Rolls / pads

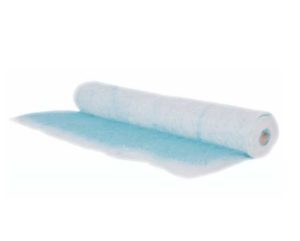

Glass Fiber
Fine filtration media specifically designed to be used in down-draft paint booths as the final filtration barrier to all paint damaging particles from the intake air stream.

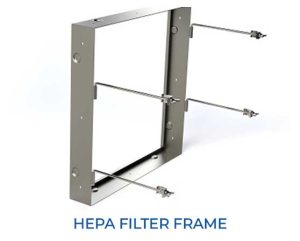

Holding Frames

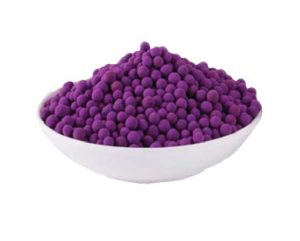

Activated Alumina Granules
Activated Alumina is a reliable filtering material for the elimination of odours and gas-based impurities.The pellets are based on the two oldest proven methods for management of gas concentration: sorption and oxidisation.
Activated Carbon Granules
The chemical “ltering material of FC Carb series is based on high-quality, dustfree activated carbon impregnated with alkaline chemicals. In unimpregnated form the adsorption force of activated carbon absorbs all kinds of organicfumes and odours. The use of special impregnating chemicals renders activated carbon capable of absorbing all types of harmful and corrosive gases.
Filter Housing Boxes
In Line Ducted Housing Box
Laminar FIow OT Housing Box
Odor Control Units
Terminal Housing Box
In Line Ducted Housing Box
In line duct mounted HEPA housing boxes provide clean air where high efficiency filtration is required. The Unit suitable to install in the duct
work system and available in different sizes based on the air fIow requirements.

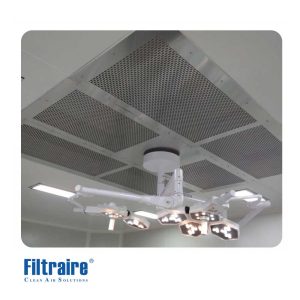

Laminar FIow OT Housing Box
The laminar fIow field for operating room are used to create a uniform air fIow of specific cleanliness in septic and aseptic operating theatres.
They meet the most stringent hygienic and technical requirements for air filtration.
Odor Control Units
Odor Control units with Activated Carbon Filters which are intended to remove gaseous contaminants from intake, re-circulated or discharge ventilation air. The main purpose of the units is to remove gaseous contaminants from the exhaust air and to prevent the environment from the Odour and harmful gases.

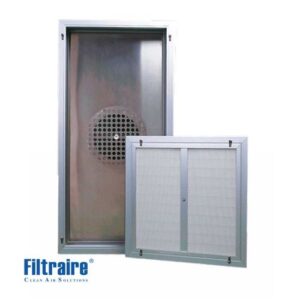

Terminal Housing Box
The terminal housing is the traditional method for fitting HEPA filters into a duct work system ensuring high quality clean air is supplied directly
to the clean room or equipment where it is required.
